Quick Details

  • Brand Name: voxlink
  • Model Number: HDSP0085S01(hdmi splitter)
  • Place of Origin: Guangdong, China (Mainland)
  • Product name: Voxlink HDMI 2.0 HDR 1x2 HDMI Splitter (4K/60Hz/HDCP2.2) EU
  • HDMI resolution: 4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i
  • Support video color format: 24bit/deep color 30bit,36bit
  • Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
  • Max bandwidth: 600MHz
  • Max baud rate: 18Gbps
  • Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
  • Input/Output DDC signal: 5Volts p-p (TTL)
  • Input cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable
  • Output cable distance: ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Packaging & Delivery

Packaging Details Plain Box for Voxlink HDMI 2.0 HDR 1x2 HDMI Splitter (4K/60Hz/HDCP2.2) EU
Delivery Time Shipped in 7 days after payment

Voxlink HDMI 2.0 HDR 1x2 HDMI Splitter (4K/60Hz/HDCP2.2) EU

Dear customer



Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.



Our series of HDMI convertersswitchers, extenders, matrixes and splitters are designed to make your A/V device use more convenient, more comfortable, more productive and more cost-efficient.



The  1x2 HDMI Splitter that supports Full HD ,3DHDR&4K*2K/60Hz uses a single HDMI

 source,accessing to multiple HDMI sinks. The Splitter allows one HDMI devices to be Splitter

easily to two HDMI compatible monitors or projectors. The Splitter can also be placed

at the end of a long  HDMI cable to regenerate the HDMI signal.



Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.





FEATURES

<!--[if !supportLists]--><!--[endif]-->One HDMI 2.0 input signal split to two HDMI 2.0 sink devices

<!--[if !supportLists]--><!--[endif]-->Support  HDR

<!--[if !supportLists]--><!--[endif]-->Support 4K*2K @60Hz resolution

<!--[if !supportLists]--><!--[endif]-->Support HDCP 1.4 to HDCP 2.2 conversion

<!--[if !supportLists]--><!--[endif]-->Support HDCP 2.2 to HDCP 1.4 conversion

<!--[if !supportLists]--><!--[endif]-->Support deep color 24bit, 30bit, 36bit

<!--[if !supportLists]--><!--[endif]-->Video Format Support: 4Kx2K/60Hz 10Bit YcbCr4:2:0; YcbCr 4:4:4/

<!--[if !supportLists]--><!--[endif]-->Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

<!--[if !supportLists]--><!--[endif]-->Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3

/DSD

<!--[if !supportLists]--><!--[endif]-->The HDMI Input Cable distance can be up to 10m and HDMI Output Cable distance can be up to 10 when transmit the 1080P signal by using standard AWG24 HDMI Cable; The HDMI Input Cable distance can be up to 5m and HDMI Output Cabledistance can be up to 5m when transmit the 4Kx2Knal by using standard AWG24 HDMI Cable;

<!--[if !supportLists]--><!--[endif]-->Support signal retiming

<!--[if !supportLists]--><!--[endif]-->No loss of quality

<!--[if !supportLists]--><!--[endif]-->Installs in minutes

<!--[if !supportLists]--><!--[endif]-->Need DC5V/2A power supply

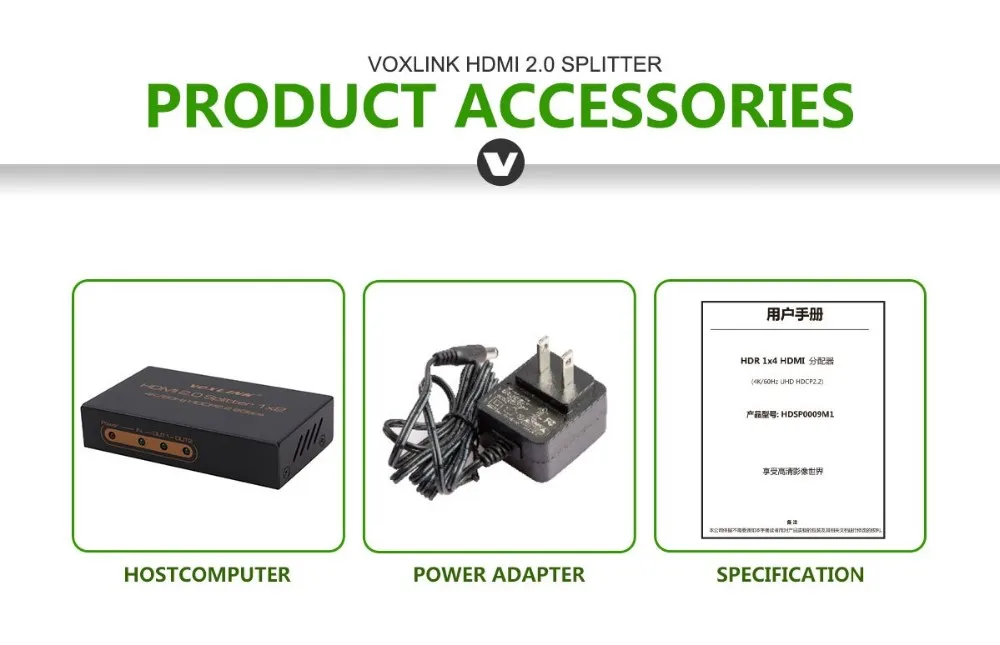

The accessories with the machines lists as picture:



1,Main unit              1pcs

2,5V Power Adaptor    1pcs

3,one pc of Manual     1pcs

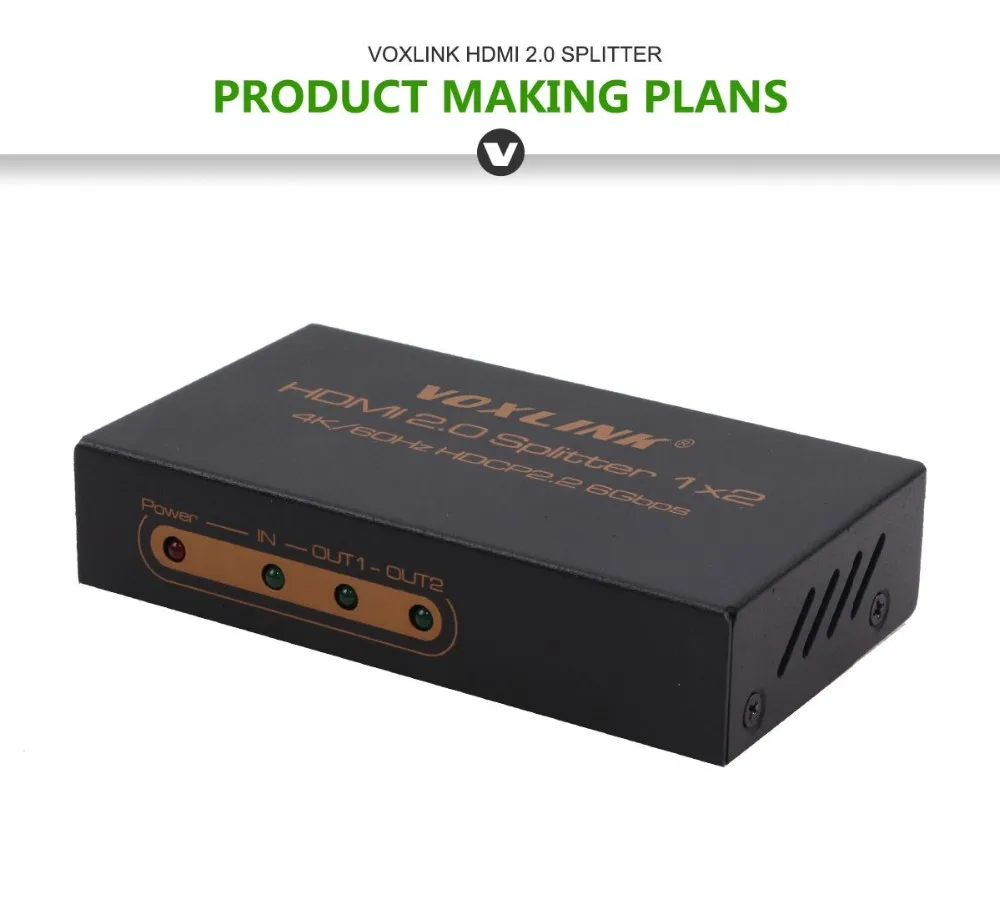

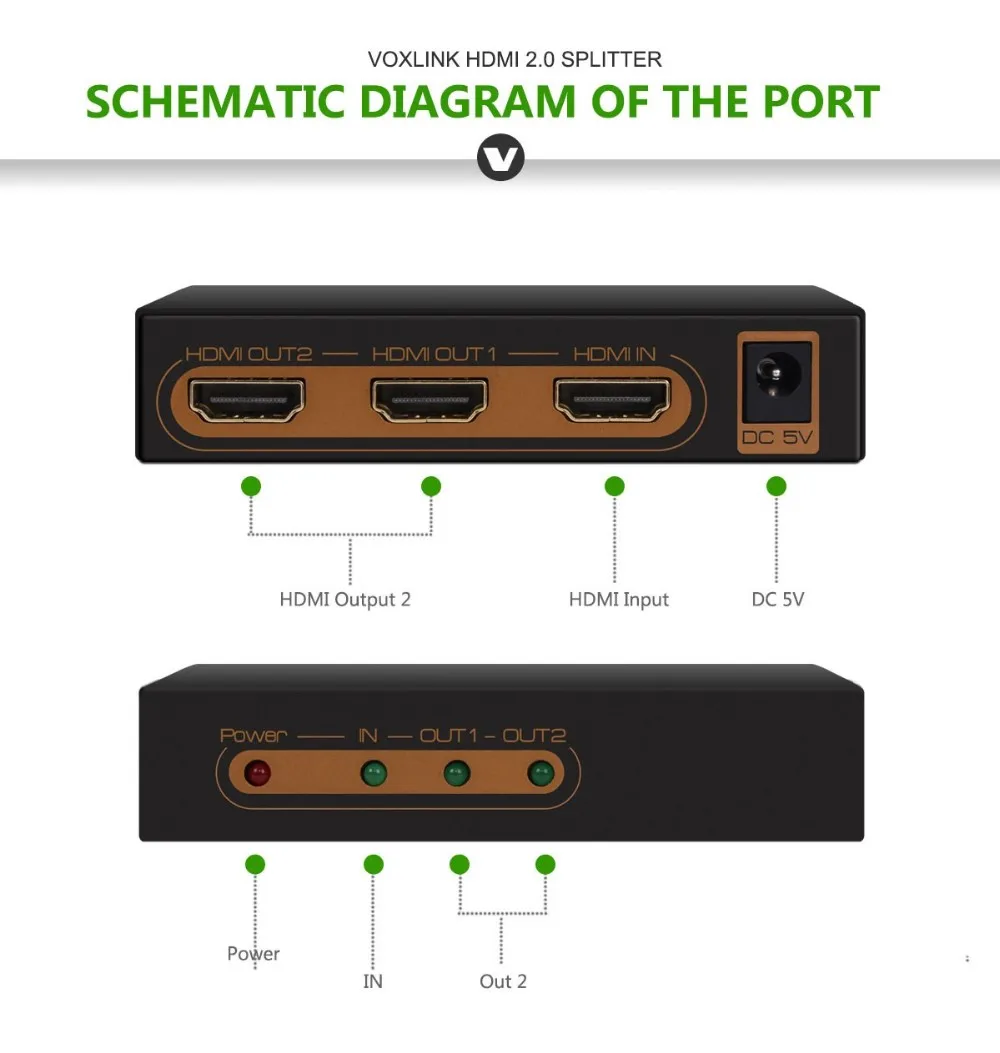

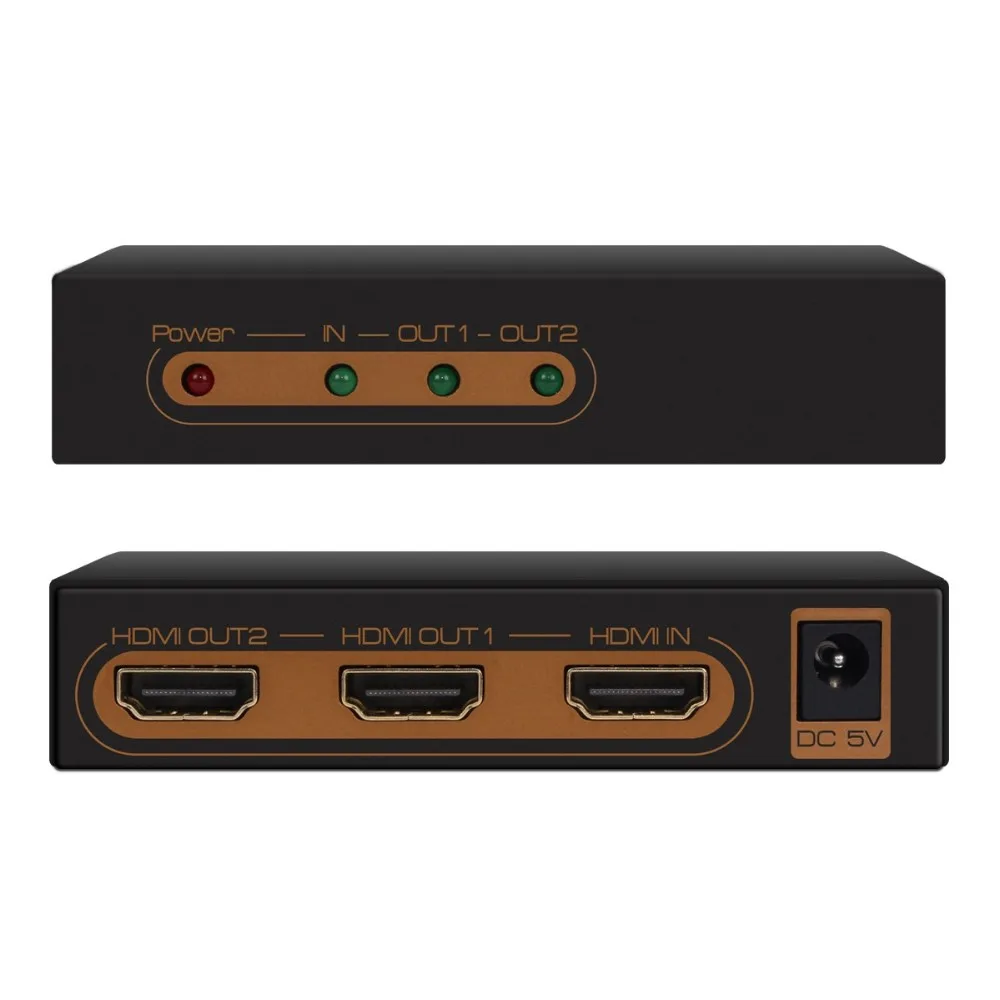

Physical Connection Showing Picture:

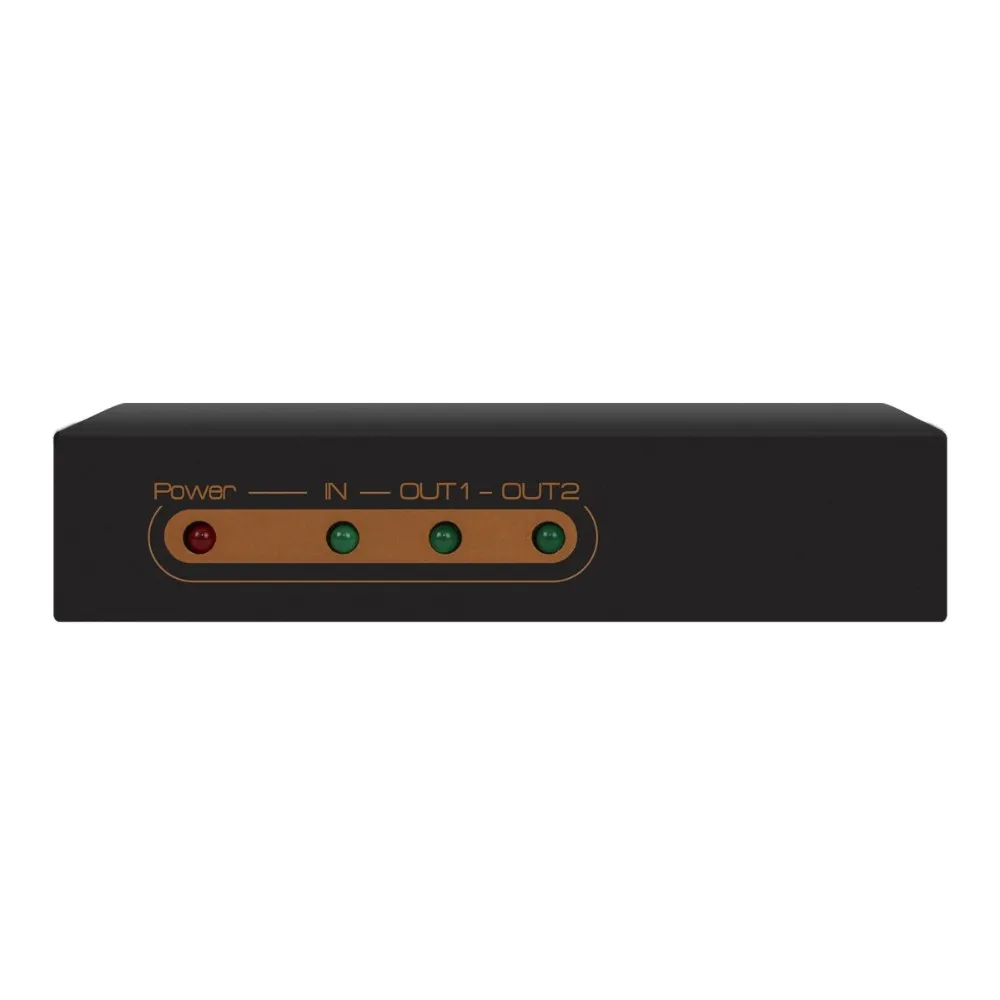

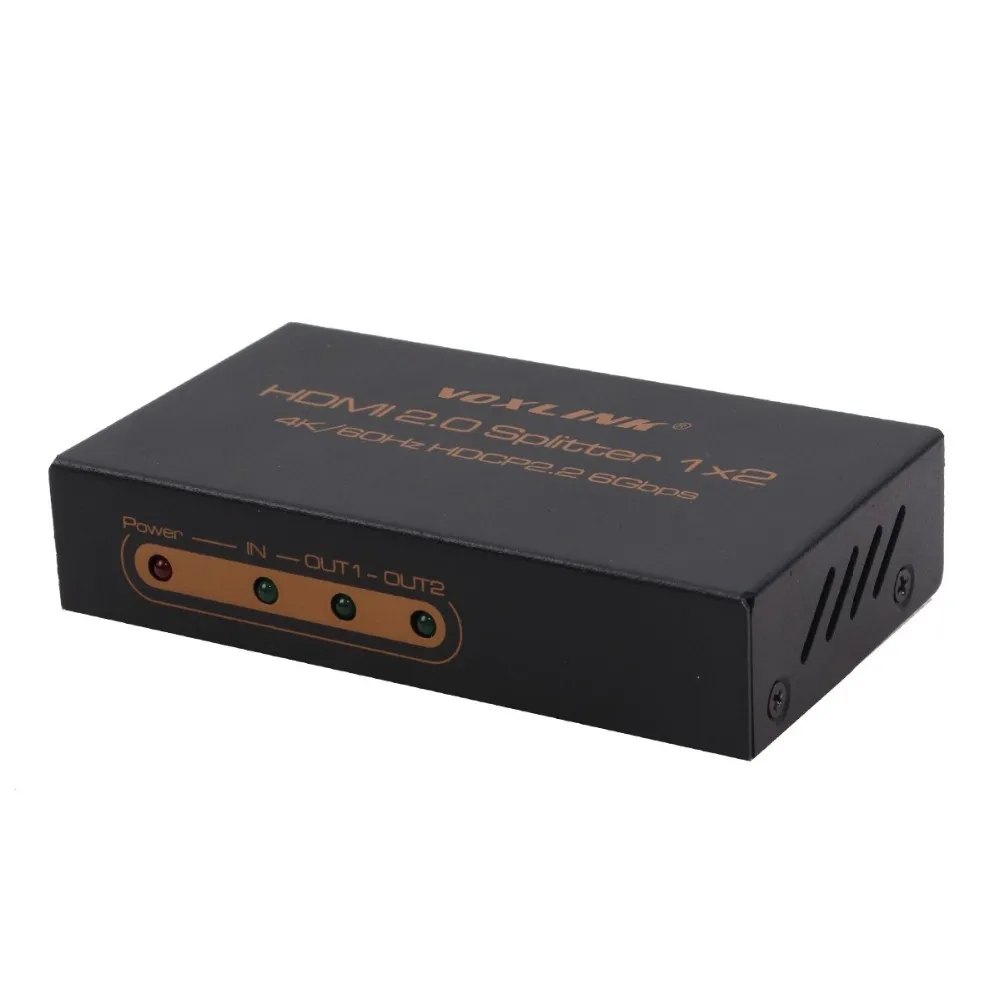

Power: Power LED

IN:Signal Input LED Light

OUT1- OUT1:Signal Output Led Light

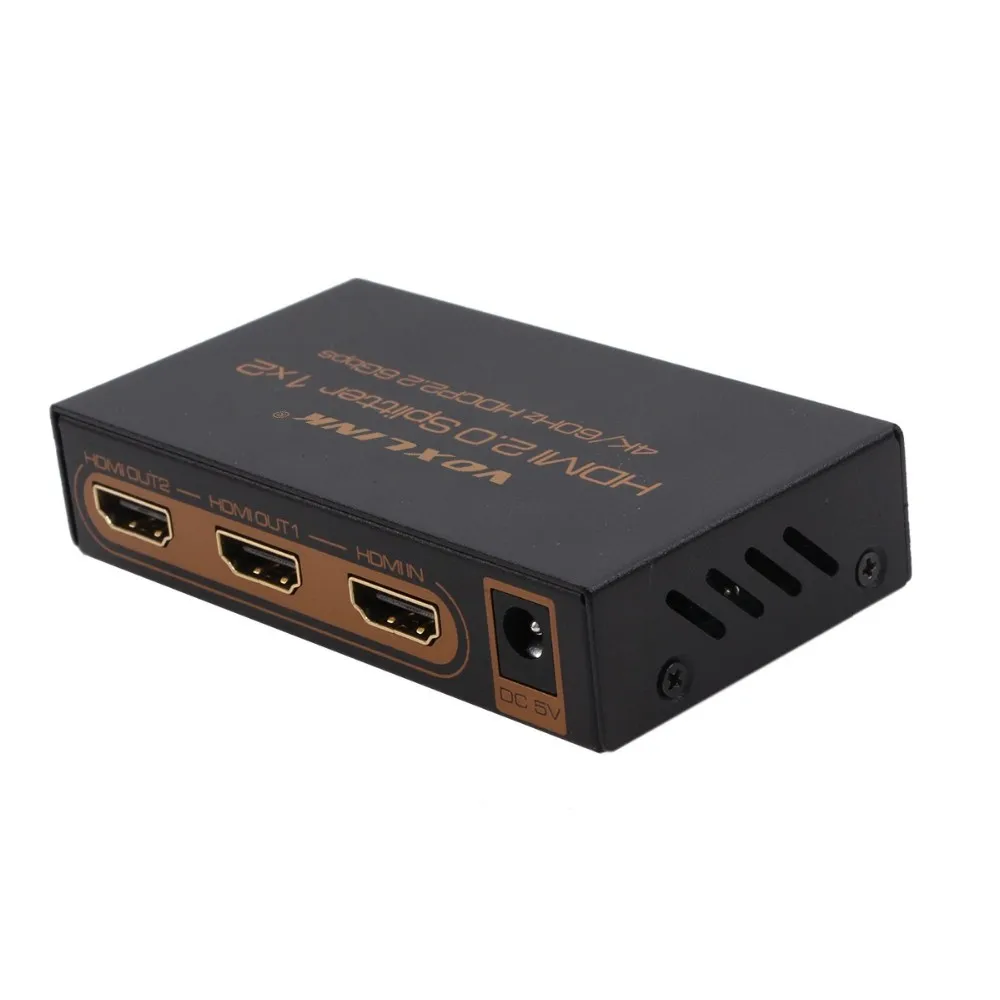

HDMI OUT1- HDMI OUT2: HDMI output interface

HDMI IN:HDMI input interface

DC 5V: 5V DC-DC Power interface

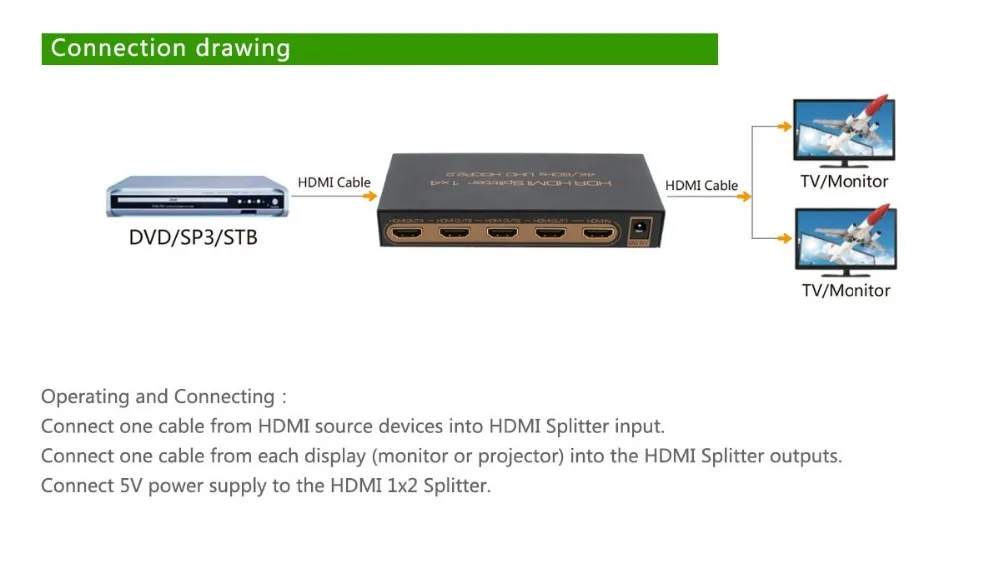

Operating and Connecting:

Connect one cable from HDMI source devices into HDMI Splitter input.

Connect one cable from each display (monitor or projector) into the HDMI Splitter outputs.

Connect 5V power supply to the HDMI 1x2 Splitter.

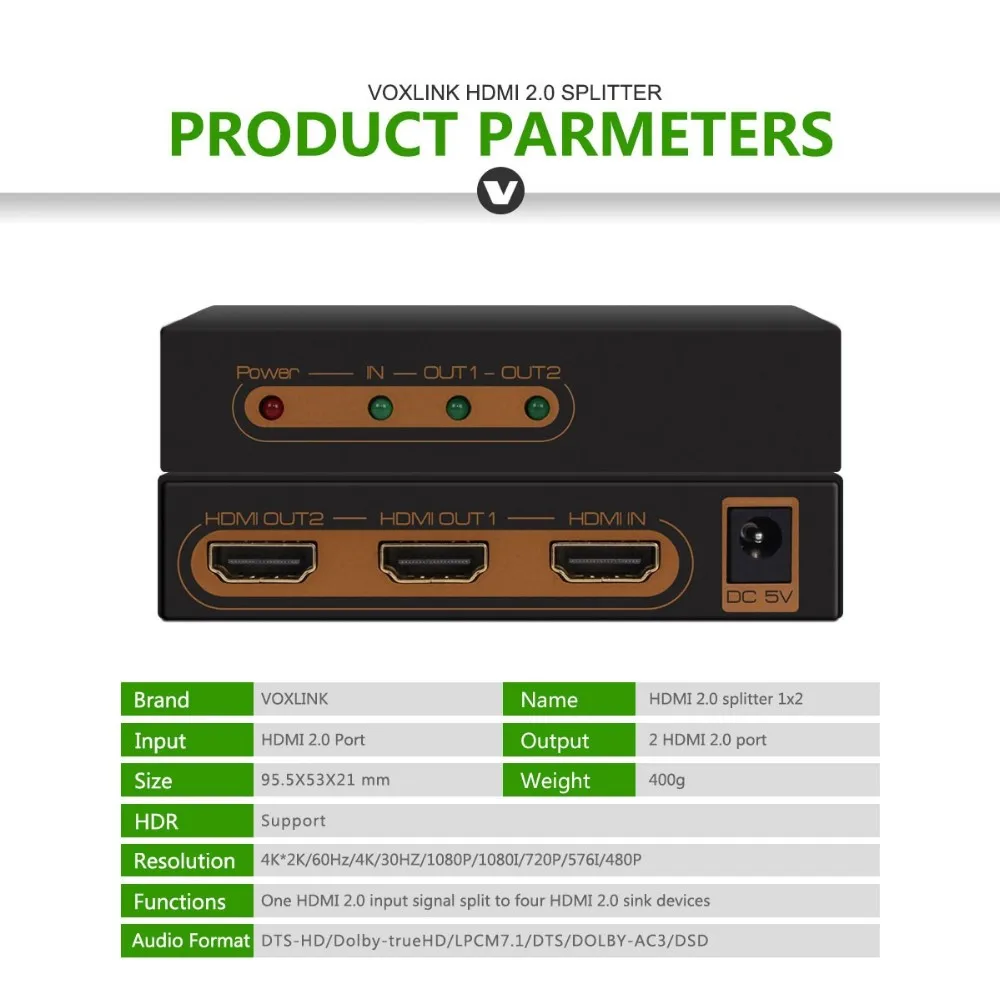

SPECIFICATIONS:        HDSP0010M1

HDMI resolution ……………4K@60Hz /4K@30Hz/3D/1080P/1080i/720p/576p/576i/480P/480i

Support video color format ……………………………..……………. 24bit/deep color 30bit,36bit

Support audio format……………………DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth………………………………………………………………………………..600MHz

Max baud rate……………….…….………………….……………………………………..18Gbps

Input/Output TMDS signal ………….…………………………..……......… 0.5~1.5Volts p-p(TTL)

Input/Output DDC signal ………………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... …………….…. ≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Output cable distance………………………≤10m(1080P)/5M(4K) AWG24 HDMI standard cable

Max working current……………………………………………………………………….....800mA

Power adapter format..Input: ………………...AC (50HZ, 60HZ) :100V-240V; Output: DC5V/2A

Operating Temperature range……..…………….………………………………………-0 to +40

Storage Temperature range…………………………………………………………… -20 to +60℃

Operating Humidity range………………………….….……….5 to 85%RH (No Condensation)

Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)

Dimension (L x W x H) ……………………………….………………….………95.5X53X21(mm)

Weight…..………………………………………………………..…….…..………………………134g



Notes:

Pls use the machine as the instruction listed to keep the long use lifetime of the machine.

<!--[if !supportLists]-->1. <!--[endif]-->The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.

<!--[if !supportLists]-->2. <!--[endif]-->All parts will be free from the strong shake, hit, fall.

<!--[if !supportLists]-->3. <!--[endif]-->Touching the power adaptor with the wet hands is prohibited.

<!--[if !supportLists]-->4. <!--[endif]-->Pls hold the power adaptor head and do not pull the power cord when cut off from the socket.

<!--[if !supportLists]-->5. <!--[endif]-->Pls turn the power off when the machine is not used for long time.

<!--[if !supportLists]-->6. <!--[endif]-->Pls do not open the cover and do not touch the inside parts.

<!--[if !supportLists]-->7. <!--[endif]-->Pls use the original factory power adaptor.



Before power on, pls check the connection line carefully. And make sure that all interfaces are normally connected. The common trouble shooting way shows below:



Serial NO

Trouble Description

Cause and Ways to deal with

1

 Non-Power-Connected

1,Check if the power adaptor head is truly and correctly inserted the power socket.

2,Check the power switch if it is in on status.

2

No Picture

1,Pls to make sure that the TV is on and has been connected with the machine.

2,To check if the signal source is on and well connected.

3,Check the system connection quality.

4,Check if the line is all good quality.

5,Check the cable quality

3

Obscure Picture

1,To try again to connect the cable to be free from the unsuccessful connection.

2,HDMI Cable Quality
